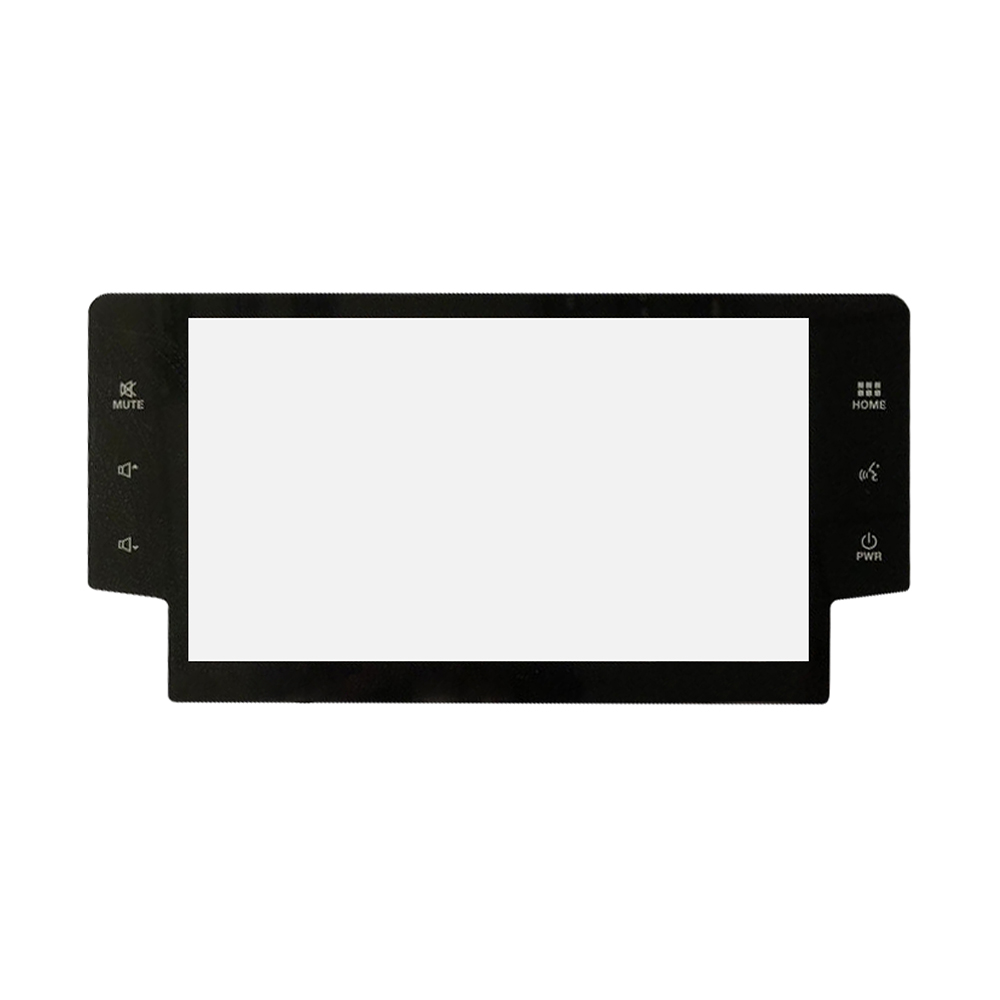

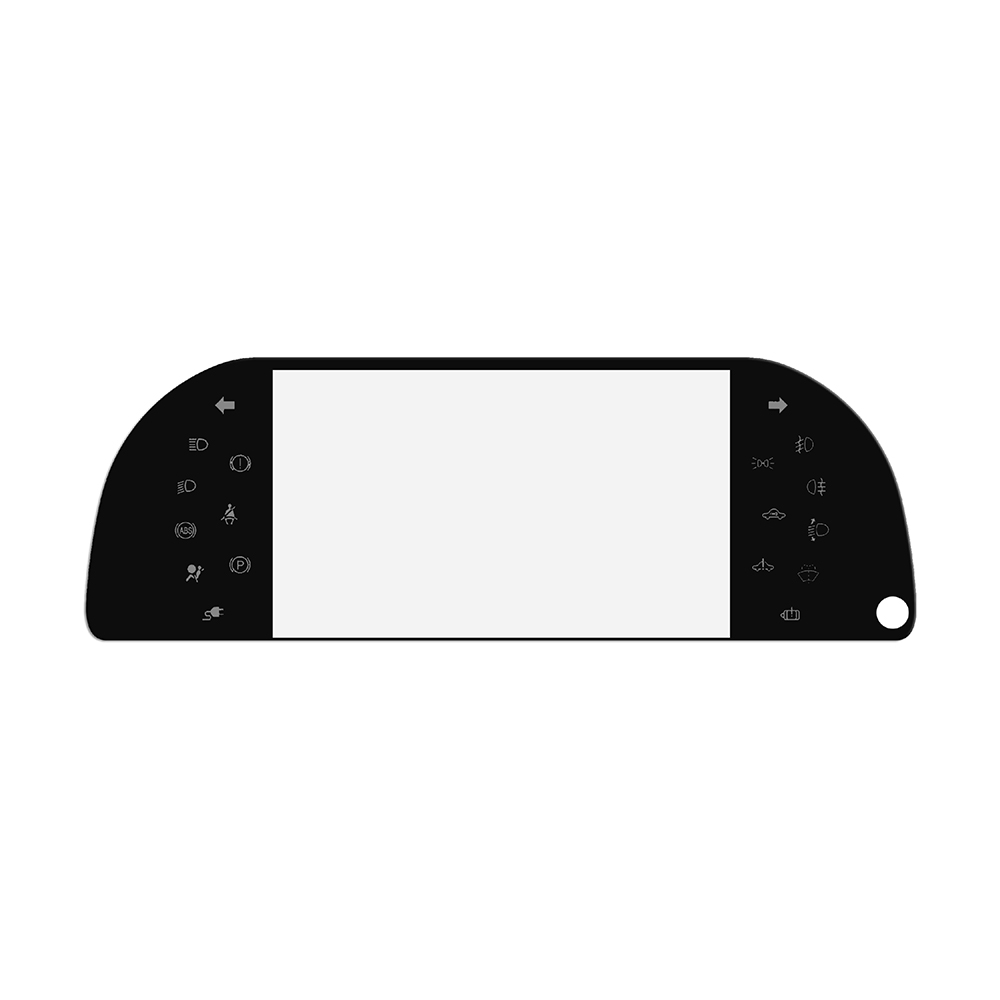

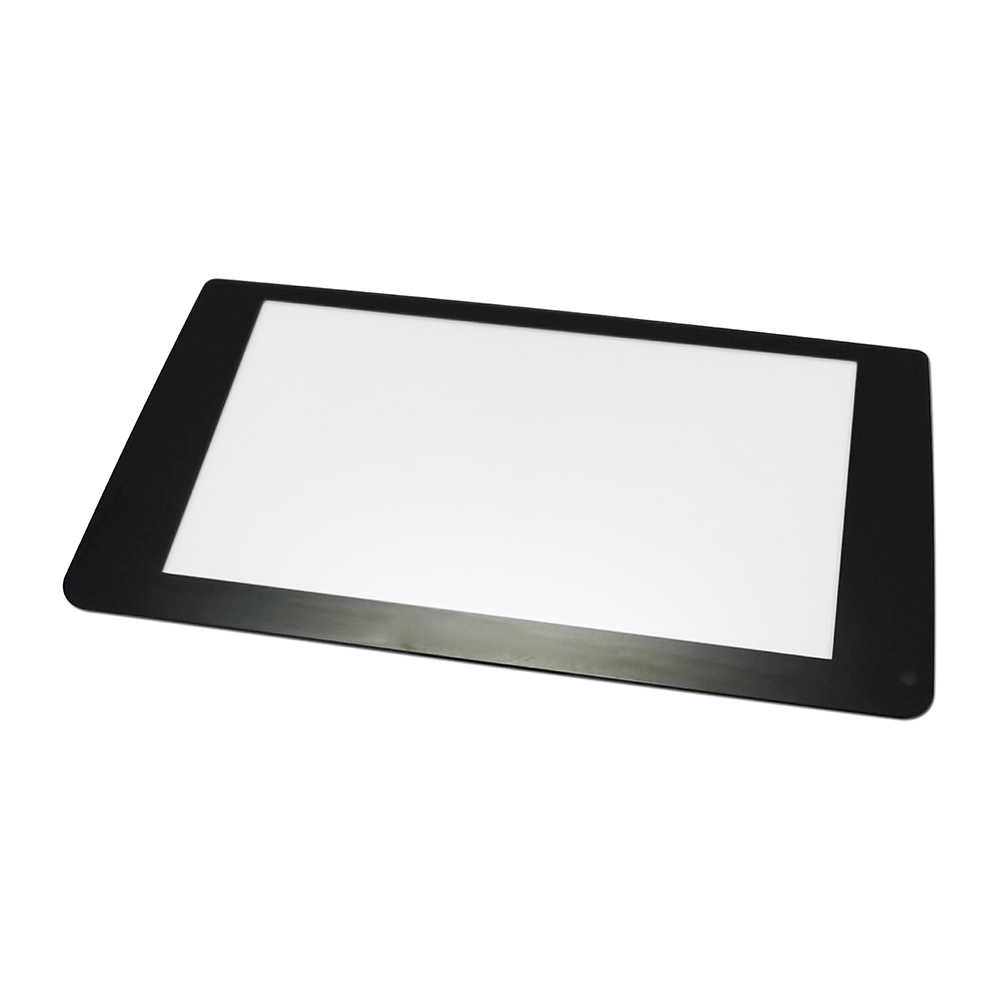

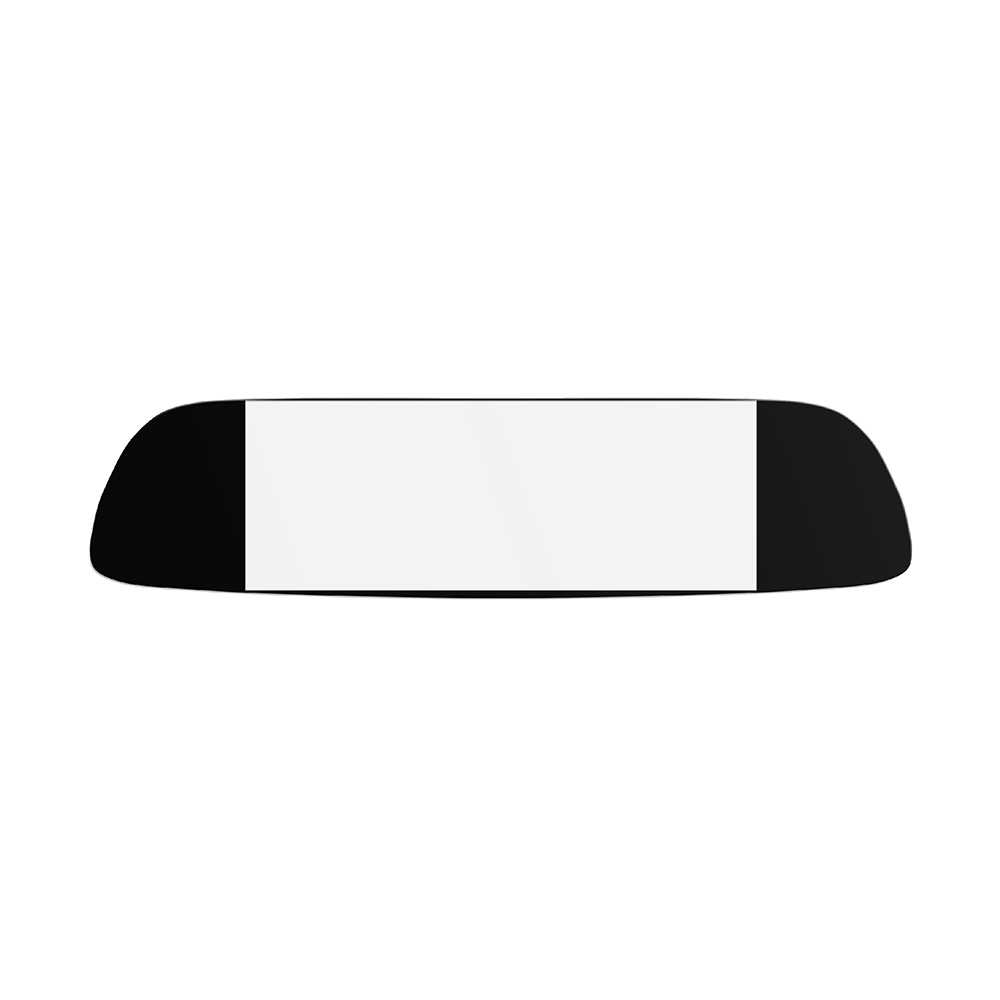

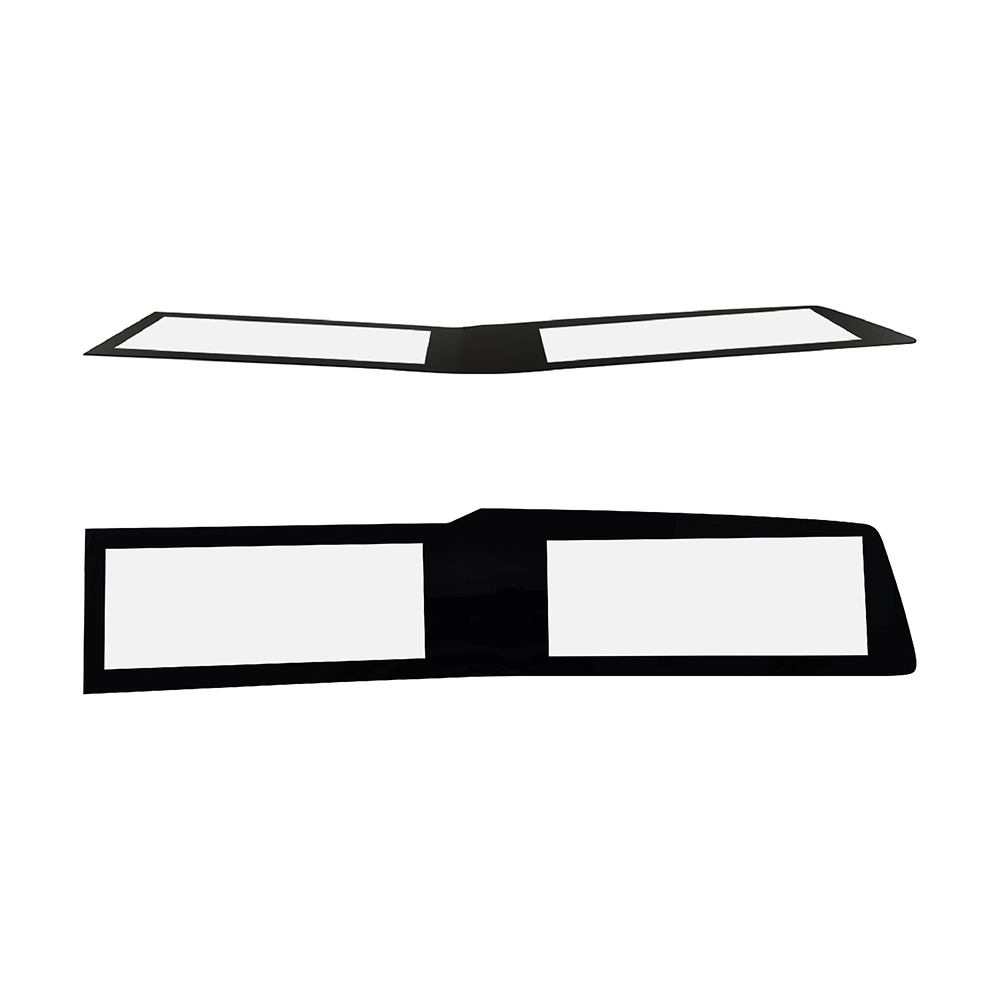

Custom AG+AF+AR Glass Automotive Display Screen Protector Glass Panel
|
Product Type
|
Custom AG+AF+AR Coated Glass Automotive Display Screen Protector Glass Panel | |||||
| Raw Material | Crystal White/Soda Lime/Low Iron Glass | |||||
| Size | Size can be customized | |||||
| Thickness | 0.23-12mm | |||||
| Tempering | Thermal Tempering/Chemical Tempering | |||||
|
Edgework
|
Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available) | |||||
| Hole | Round/Square (Irregular hole are available) | |||||
|
Color
|
Black/White/Silver (up to 7 layers of colors) | |||||
|
Printing Method
|
Normal Silkscreen/High Temperature Silkscreen
|
|||||
| Coating |
Anti-Glaring
|
|||||
| Anti-Reflective | ||||||
| Anti-Fingerprint | ||||||
|
Anti-Scratches
|
||||||
|
Production Process
|
Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack | |||||
| Features | Anti-scratches | |||||
| Waterproof | ||||||
| Anti-fingerprint | ||||||
| Anti-fire | ||||||
| High-pressure scratch resistant | ||||||
| Anti-bacterial | ||||||
| Keywords |
Tempered Cover Glass for Display
|
|||||
| Easy Clean-up Glass Panel | ||||||
|
Intelligent Waterproof Tempered Glass Pane
|
||||||

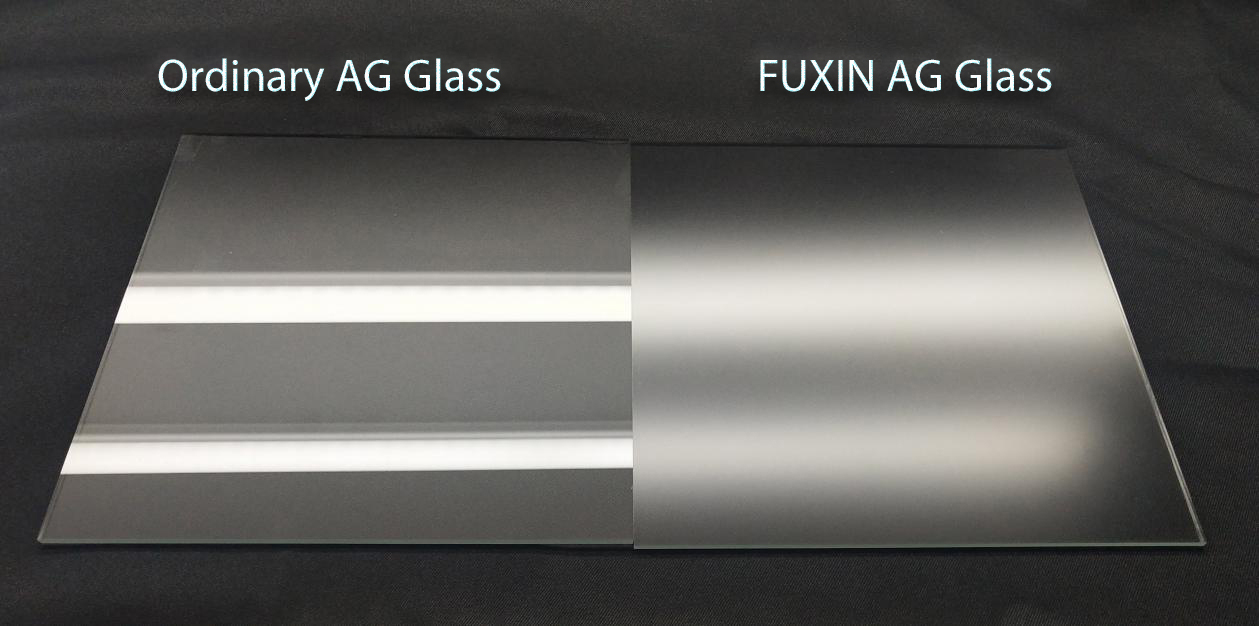

Typical Parameter Ranges for AG Cover Glass:
-
Glossiness (60°): 90 - 120 GU
(Measures surface shininess; lower values indicate more matte finish) -
Haze: 2% - 10%
(Measures light diffusion; higher values give stronger anti-glare effect) -
Surface Roughness (Ra): 0.1 - 0.5 µm
(Measures microscopic peaks and valleys; critical for feel and anti-fingerprint performance) -
Distinctness of Image (DOI): 80 - 95
(Measures clarity of reflected images; higher values mean sharper reflections despite the matte surface)
- Transmittance: ≥90% to 98% (visible light, 400-700 nm)
- Reflectance: ≤1% to 4% (single-side or double-side coating, at normal incidence)
- Haze: ≤0.1% to 1%
- Surface Hardness: ≥6H to 9H (Mohs scale, depending on coating)
- Thickness: 0.3 mm to 3 mm (application-dependent)
- Refractive Index: 1.45 to 1.55 (for AR coating layer)
- Durability (Abrasion Resistance): ≥10,000 cycles (steel wool test, specific load)
- Adhesion: 5B (ASTM D3359 cross-hatch test)
- Operating Temperature: -20°C to 80°C (or higher for specialized applications)
- Coating Uniformity: ±5% variation in thickness across surface
|
Parameter |
Typical Value Range |
Description |
|
Water Contact Angle |
100° – 120° or higher |
Measures hydrophobicity; higher angles indicate better water repellency and easier cleaning. |
|
Oil Contact Angle |
60° – 80° or higher |
Indicates oleophobicity; higher values reduce oil adhesion and fingerprint visibility. |
|
Pencil Hardness |
3H – 9H |
Assesses surface scratch resistance; higher grades (e.g., 9H) provide superior durability. |
|
Transmittance |
>90% (at visible wavelengths) |
Optical clarity; ensures minimal light loss for vibrant display performance. |
|
Glass Thickness |
0.3 mm – 8 mm |
Balances strength, flexibility, and touch sensitivity; thinner for portability, thicker for rugged use. |

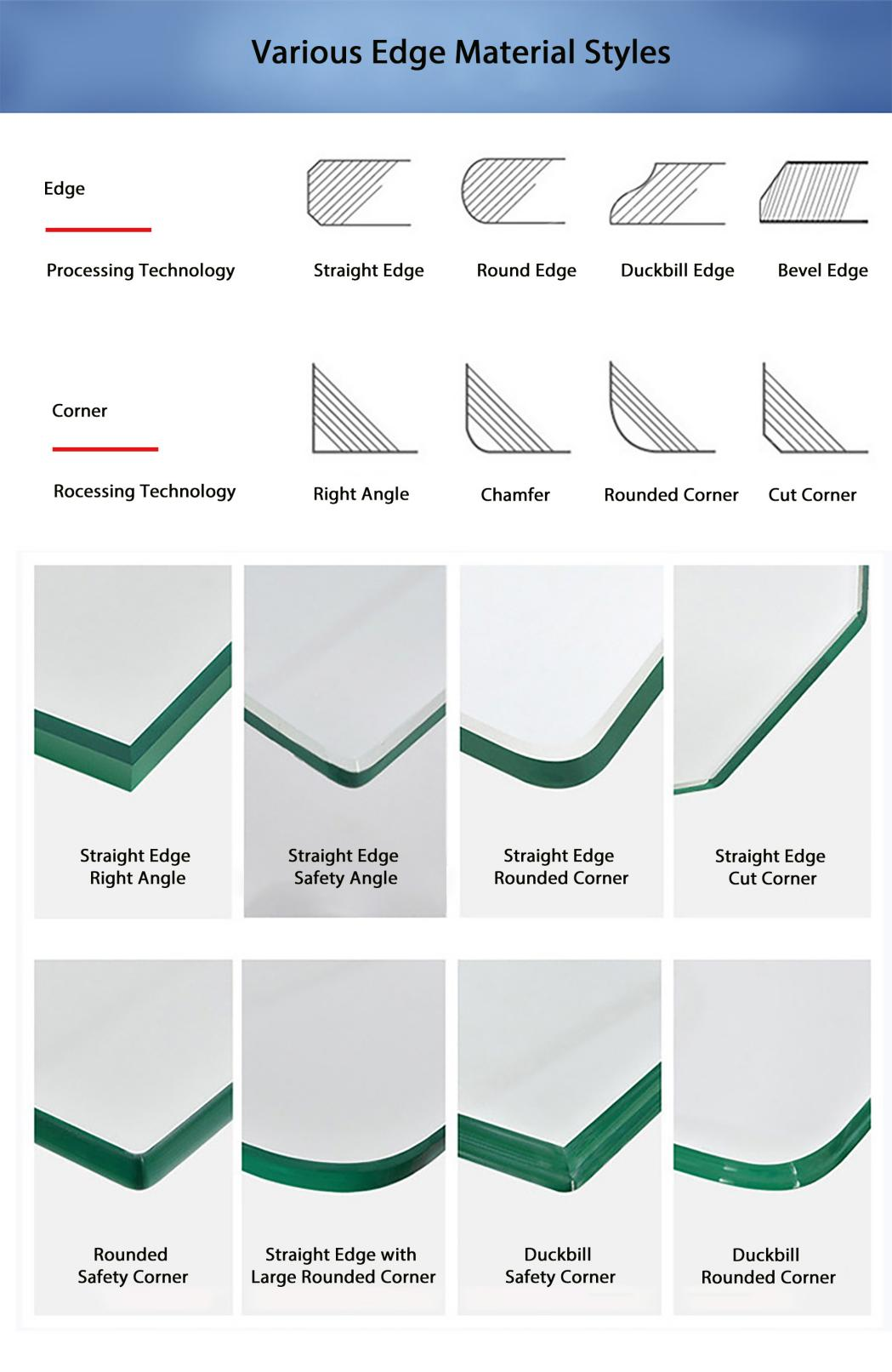

Edge and Chamering Process

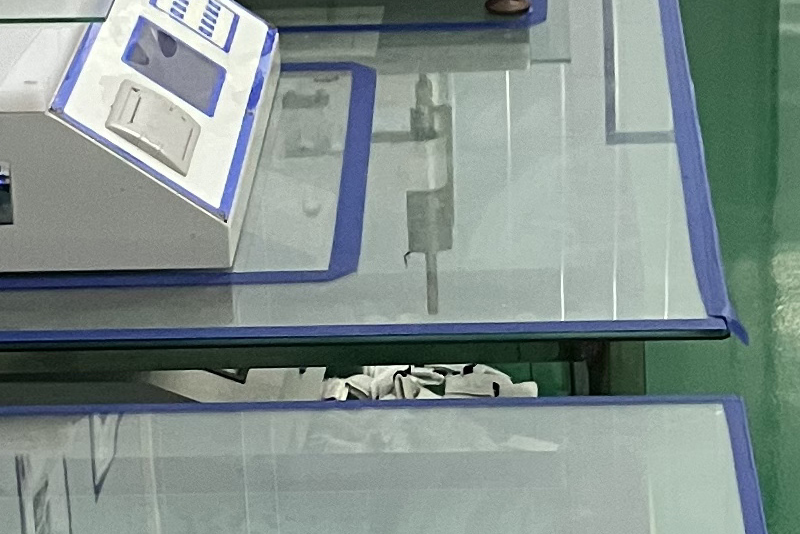

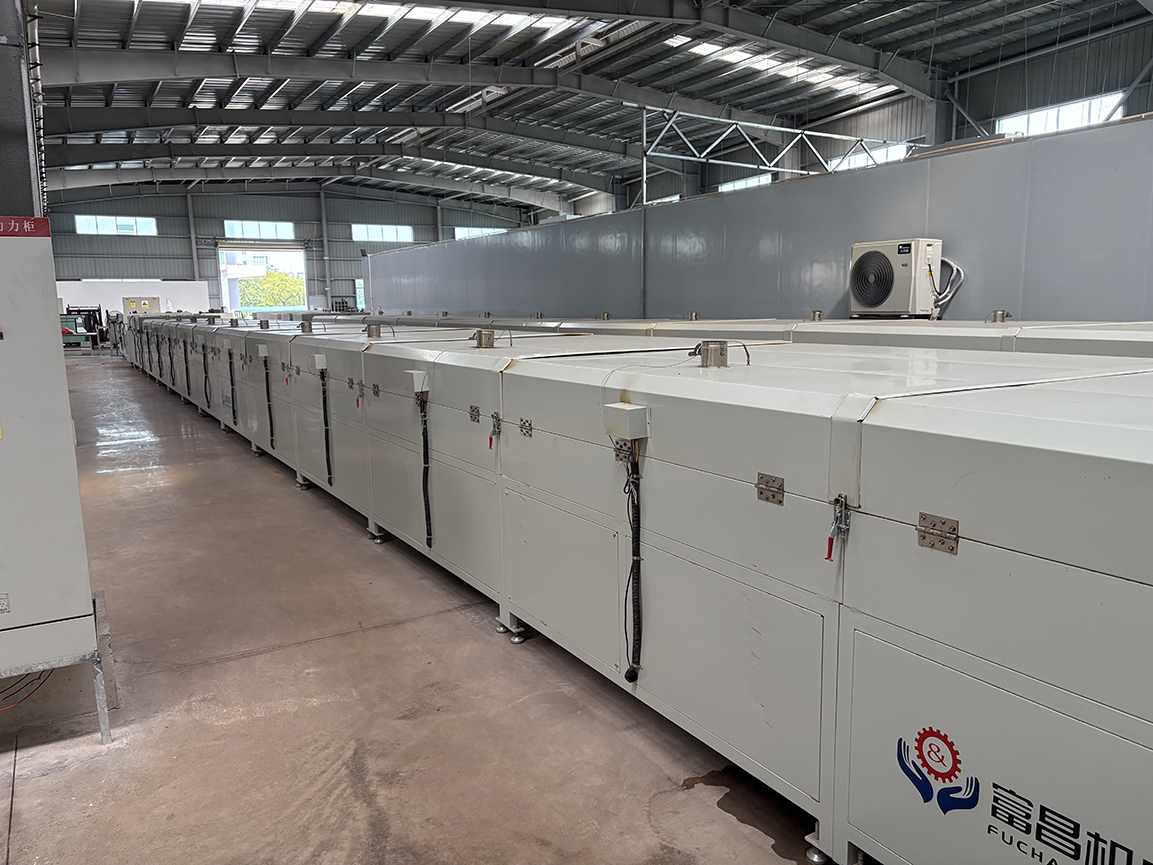

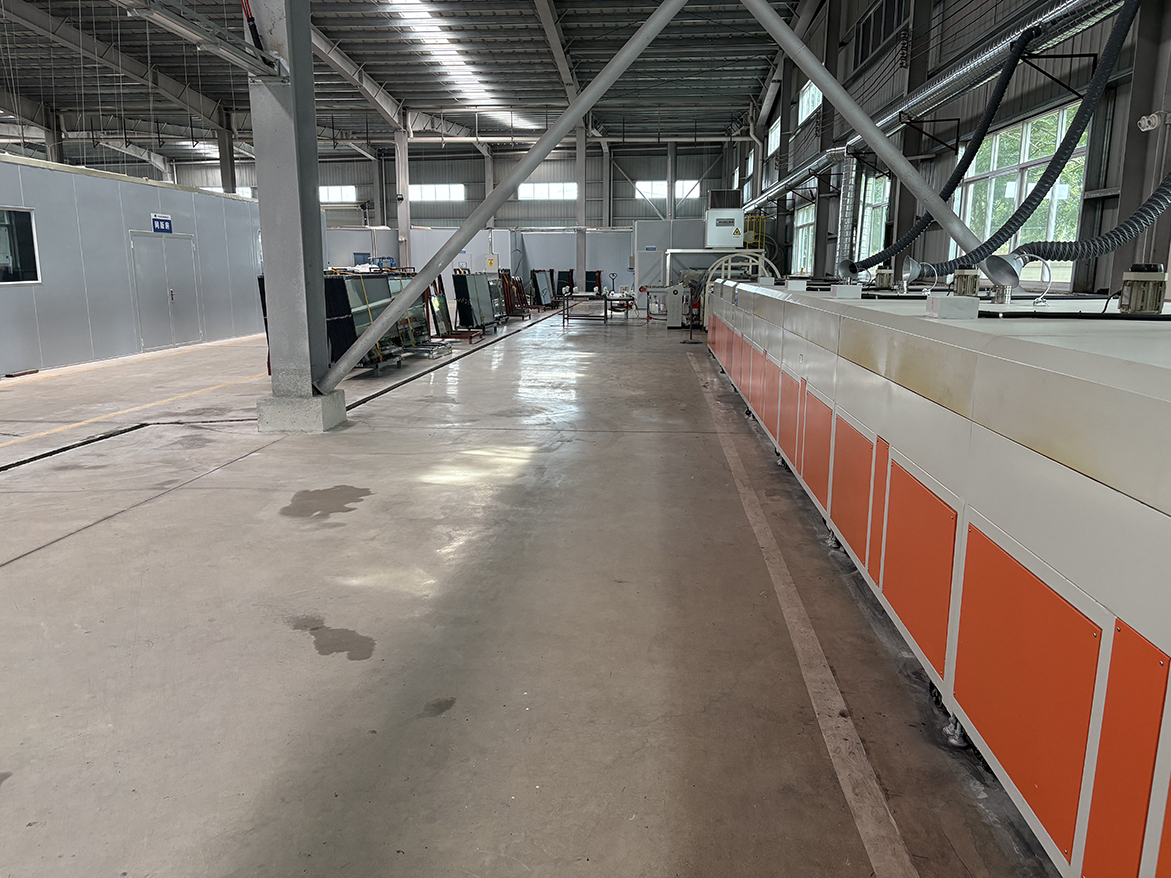

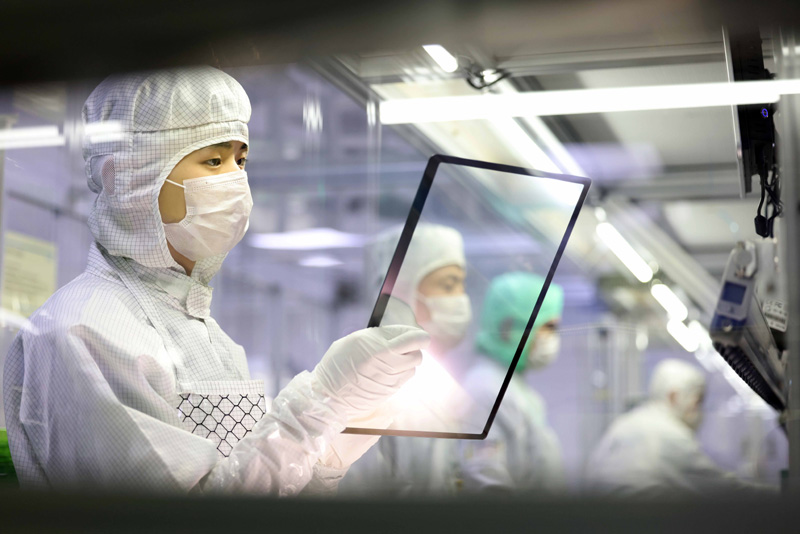

Factory Overview
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
