Custom Glass Panel for EV Charging Piles
The global charging piles industry continues to grow at a high rate, driven by factors such as surging sales of electric vehicles, government policy support, advancements in charging technology, and increasing market competition. The rapid growth of electric vehicle is a major source of demand for the charging pile market. Governments have introduced policies to encourage the development of electric vehicles and are actively investing in the construction of charging pile infrastructure. The application of new technologies such as fast charging technology and wireless charging technology has improved charging efficiency and enhanced user experience. With the continuous development of the charging pile industry, the demand for charging pile glass panel is also increasing.
Fuxin's Capabilities

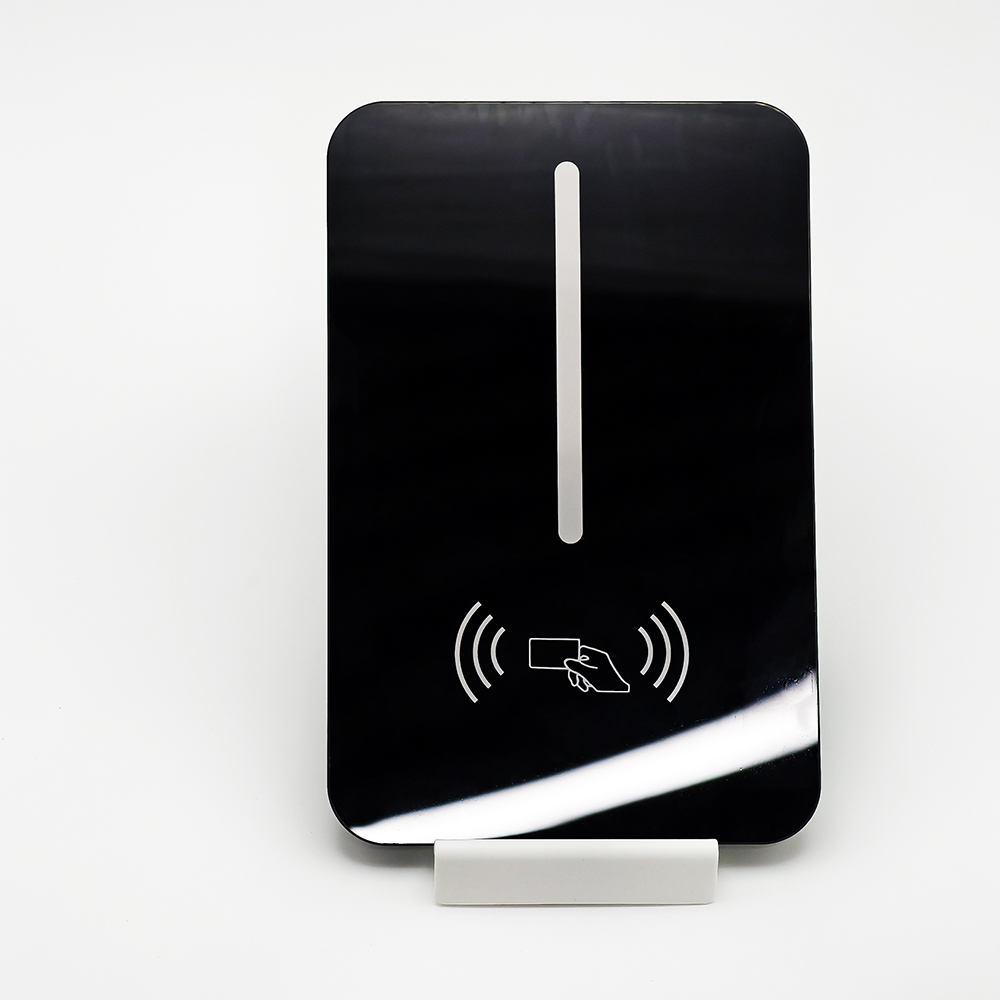

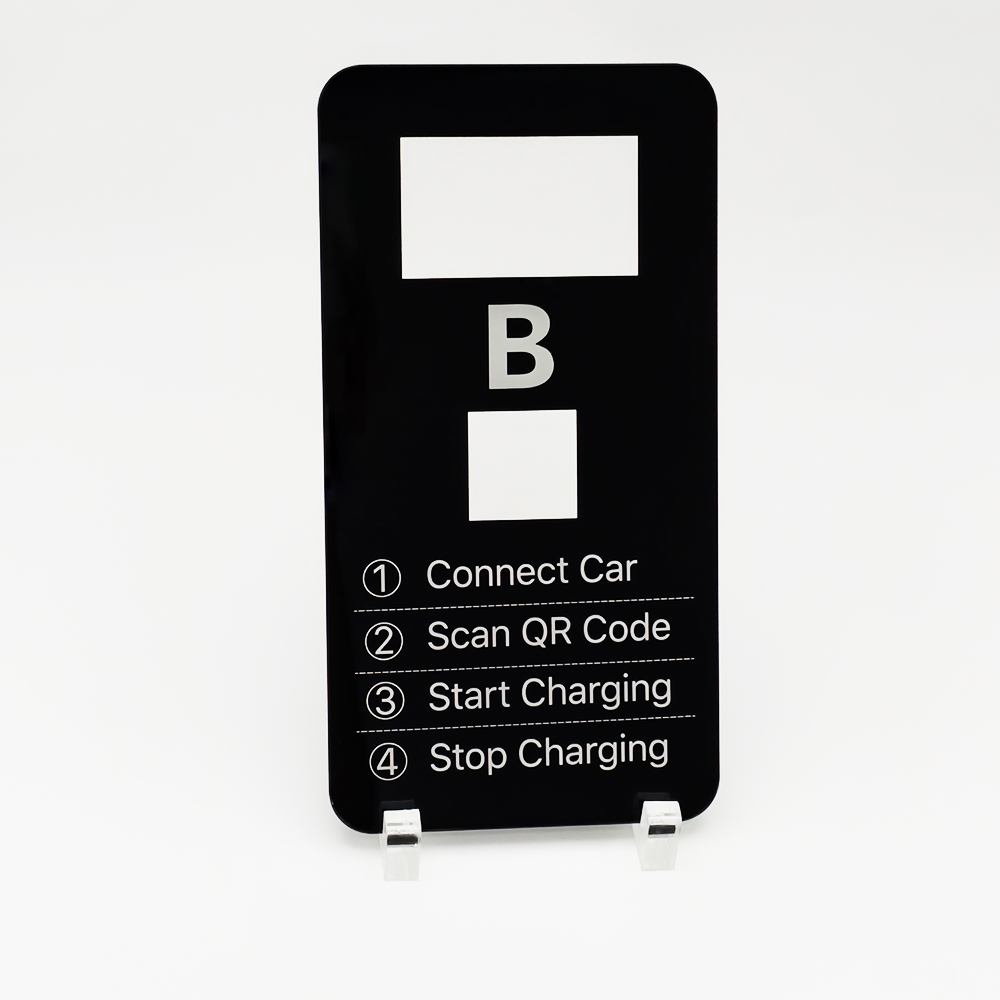

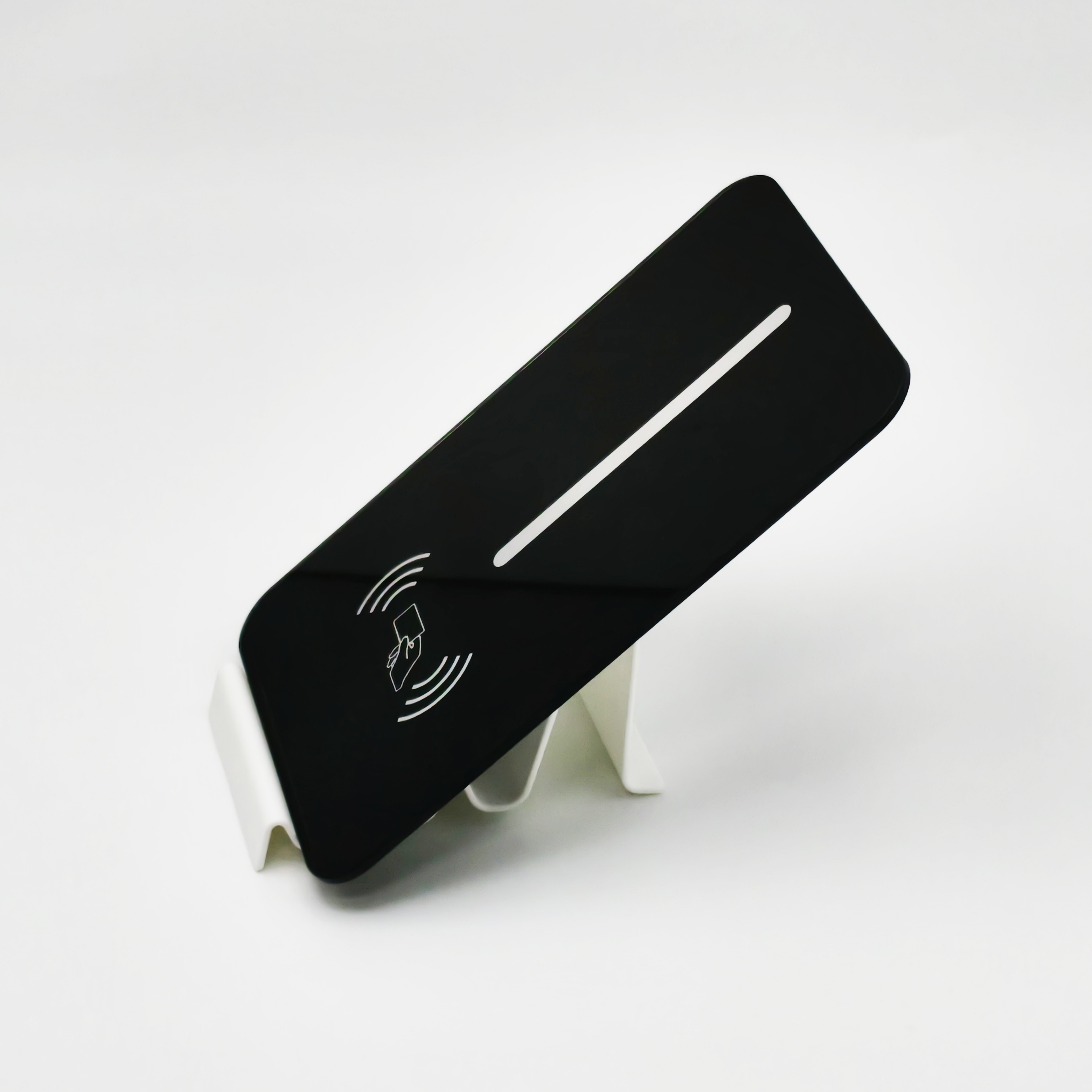

| Product Name | Multifunctional Glass Cover for Charging Pile |
| Material | 4.0mm Soda Lime Glass |
| Optical Data | Transmittance ≥89% |
| Strengthening |
CS>450Mpa, DOL>8um.
Special Chemical Reinforcement Treatment, Passed the Ball Drop Test at a Height of 1.5 Meters for 500g Steel Balls
|
| Silk Screen |
Black, Green, White,
Passed Anti-UV Aging Test for More Than 1300 Hours of Outdoor Use, and Does not Fall Off or Change Color.
|
| Certification | ISO14001:2015; ISO9001:2015 |
| Surface Treatment | AG, AR or customized |
| Packaging | Vacuum Packaging |
Performance Requirements for Charging Pile Glass Cover
- High Strength and Durability: The glass cover plate must withstand mechanical stress, impacts, and vibrations from daily use and environmental factors. Tempered or laminated glass is often required to ensure high strength and resistance to cracking or shattering.
- Scratch and Abrasion Resistance: The surface should resist scratches and wear from frequent handling, cleaning, or exposure to debris, maintaining clarity and aesthetics over time. A surface hardness of at least 6H (Mohs scale) is typically required.
- Weather Resistance: The glass must endure extreme weather conditions, including UV exposure, high humidity, and temperature fluctuations (-20°C to 80°C or broader), without degrading, yellowing, or losing structural integrity.
- Anti-Glare and Optical Clarity: The cover plate should provide high transparency (typically >90% light transmittance) for clear visibility of displays or indicators while minimizing glare to ensure readability in bright sunlight.
- Chemical Resistance: Resistance to corrosion from cleaning agents, oils, and environmental pollutants is essential to maintain appearance and functionality over the product’s lifespan.
- Waterproof and Dustproof: The glass should support IP-rated sealing (e.g., IP65 or higher) to prevent water and dust ingress, protecting internal components of the charging pile.
- Thermal Stability: The glass must resist thermal shock and maintain performance under rapid temperature changes, especially for outdoor charging stations exposed to varying climates.
- Anti-Fingerprint and Easy-to-Clean: A surface coating (e.g., oleophobic or hydrophobic) is often applied to reduce fingerprints, smudges, and dirt accumulation, ensuring easy maintenance.
- Impact Resistance: The glass should meet standards like IK08 or higher for impact resistance, protecting against accidental impacts or vandalism.
- Aesthetic and Customization: The glass should support customization (e.g., color, printing, or logos) to align with branding while maintaining a sleek, modern appearance.
- Anti-Static Properties: To prevent static buildup, which could interfere with electronic components, the glass may require anti-static coatings or treatments.
- Safety Features: In case of breakage, the glass should be designed to minimize harm, such as using laminated glass that holds together or tempered glass that breaks into small, blunt fragments.
-
1
1) Are you a trading company or manufacturer?
1. Leading glass deep processing factory
2. 13 years of experience
3. OEM/ODM expertise -
2
2) How to order?
1. Your detailed requirements: drawings/quantity/or your special requirements.
2. Let's get to know each other better: We can provide your requirements.
3. Email us your formal order, payment.
4. We will incorporate the order into our mass production plan and produce according to the approved sample.
5. Packing & shipping -
3
3) Do you provide samples for testing?
We can provide free samples, but the shipping cost will be borne by the customer.
-
4
4) What is your minimum order quantity?
A: 200 pieces.
-
5
5) How long does a sample order take? How about a bulk order?
Sample order: Usually within a week.
Bulk order: Usually takes 15~20 days depending on quantity and design. -
6
6) What packaging do the products use?
Plastic wrap + pearl cotton + kraft paper + cartoon box + wooden crate.
-
7
7) How do you ship the goods, and how long does it take to arrive?
We usually ship by sea / air freight/ International Express, and the arrival time depends on the distance.
-
8
8) What are your payment terms?
A: T/T 100% in advance, or other payment methods.
-
9
9) Do you provide OEM/ODM services?
Yes, we can customize.
-
9
10) Do your products have certificates?
Yes, we have ISO9001/REACH/RoSH/GS/JIS Z certifications.
