Applications and future development trends of optical polycarbonate PC sheets in electronic touch screen
PC (polycarbonate) optical sheets are emerging as a powerful complement and alternative to glass in the field of electronic touch screen cover plates. Their core value lies in lightweight design, impact resistance, and design flexibility. Currently, they are not intended to completely replace glass, but rather to provide a better solution in specific scenarios. The future trend is towards complementarity and integration with glass.
PC optical board Core application scenarios
- Consumer Electronics: Primarily used for the front and back covers of touchscreens in smartphones and tablets. PC/PMMA composite materials, in particular, have gained recognition from major manufacturers like Huawei and Samsung because they meet the requirements of 5G signal transmission and wireless charging, while being lighter, thinner, and more shock-resistant than glass.

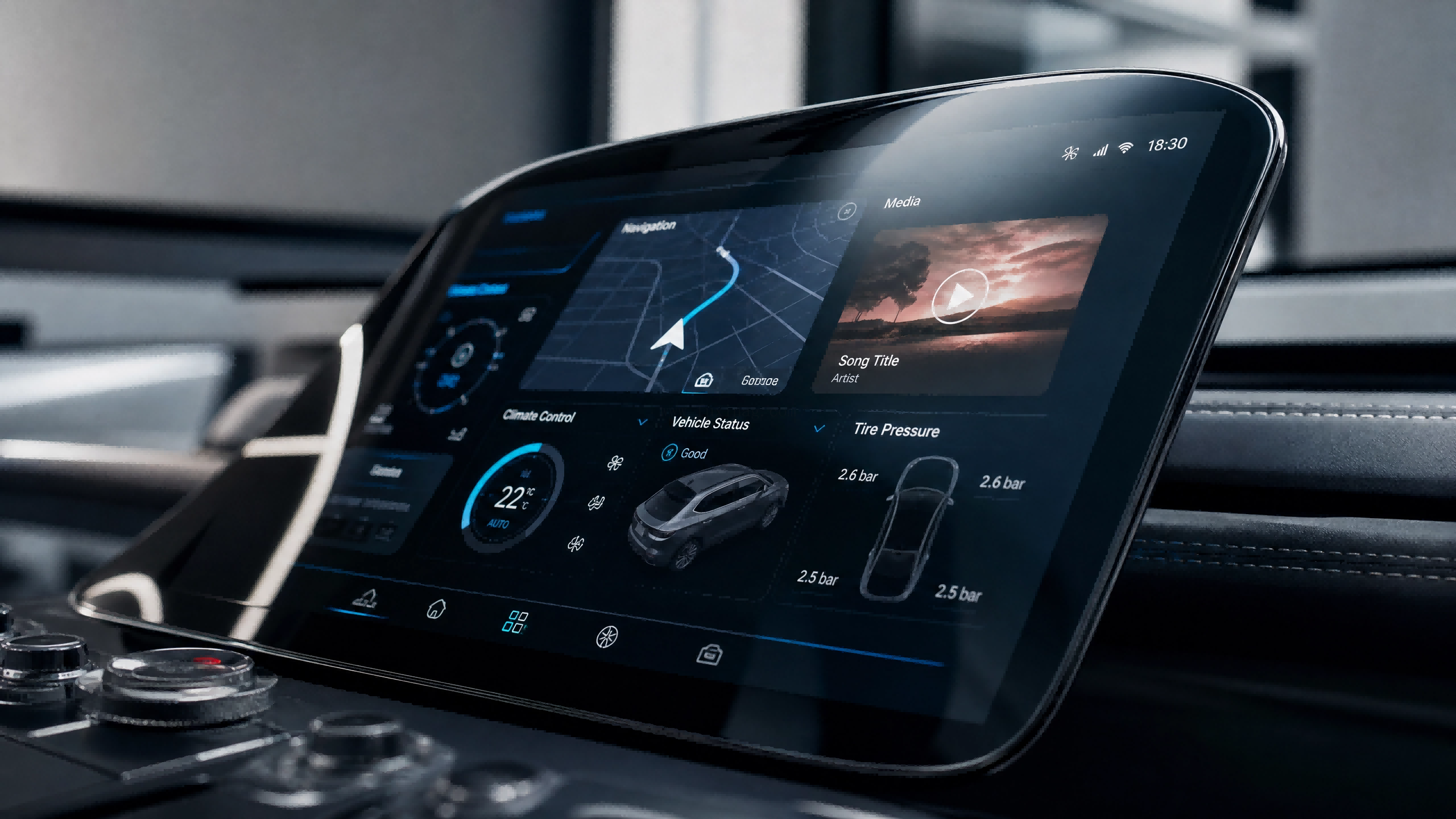

- Automotive Electronics: This is one of the fastest-growing areas for PC applications. It is used in automotive center consoles, dashboards, and smart transparent touch displays. In new energy vehicles, PC materials are also used to create lightweight panoramic sunroofs and windows, reducing weight by up to 50% and significantly improving range. Installing transparent touchscreens in A-pillars to eliminate blind spots is also a cutting-edge application.
- Industrial and Public Equipment: In factory control panels, self-service terminals, ATMs, and outdoor advertising machines, PC's extremely high impact resistance (up to 200 times the strength of ordinary glass) effectively resists vibration, impacts, and even malicious damage, ensuring stable equipment operation.
- Educational and special needs equipment: Products such as children's learning tablets and e-readers are designed to be shatterproof, avoiding the risk of injury from glass shards and ensuring greater safety.
PC vs. Glass: Key Performance Comparison
| PC | Glass | |
| Impact resistance | Excellent, good toughness, not easily broken. | Poor, brittle, and easily broken |
| Safety | High, fractured without sharp fragments | Low, when it breaks, it produces sharp fragments that could cause injury. |
| Weight | Lightweight, can significantly reduce weight. | Heavy |
| Design freedom | High efficiency and easy to process into complex curved surfaces | Low, difficult and expensive hot bending forming |
| Surface hardness/arasion resistance | Poor, easily scratched, requires hardening treatment | Excellent, very scratch resistant |
| Transmittance and texture | Good, optical-grade products have high light transmittance, but the texture is slightly inferior. | Excellent light transmission, smooth to the touch, and high-end texture |
| Cost | low | High (especially high-end tempered glass) |
Simply put, choosing PC means choosing the ultimate in drop resistance, lightness, and safety; while choosing glass means pursuing the ultimate in surface texture and scratch resistance.
Future Development Trends: From "Substitution" to "Integration"
The future of PC optical boards in the touchscreen field will unfold along two dimensions: technological innovation and application expansion, potentially merging with glass:
- Technological Innovation, Overcoming Shortcomings: Through surface hard coating treatments, the development of PC/PMMA composite materials, and the research and development of low-phase-difference PC, PC is continuously overcoming its shortcomings in hardness and optical performance, with its performance increasingly approaching that of glass.
- Application Expansion, Deepening Targeted Applications: In the future, PC will further penetrate areas with a strong demand for its advantages. With the development of flexible displays and foldable screens, the bendable nature of PC will become even more valuable. Simultaneously, in the wave of automotive intelligence, PC will become a key material for realizing large-size, irregularly shaped, integrated touchscreen automotive screens.
- Market Growth, Broad Prospects: Market research shows that the PC/PMMA composite material market is growing rapidly. It is projected that by 2032, the related display functional glass panel market and touch display module market will continue to grow at a considerable compound annual growth rate (CAGR), providing a huge market space for PC optical boards.
- Coexistence with Glass, Towards Integration: PC and glass are not simply substitutes for each other, but will coexist for a long time. The future trend is more likely to be integration, for example, through lamination of PC and glass, or the development of glass-like plastics, to simultaneously absorb the advantages of both materials and achieve optimal performance.
In summary, PC optical sheets are playing an increasingly important role in the field of touch screen cover plates. With its absolute advantages in impact resistance, lightweight, and design flexibility, it has become an ideal alternative to glass in certain applications, and its market prospects are broad. In the future, with the advancement of materials science, the boundaries between PC and glass may become blurred, ultimately leading to integration and jointly driving the development of touch display technology towards safer, lighter, and more diverse directions.
